01

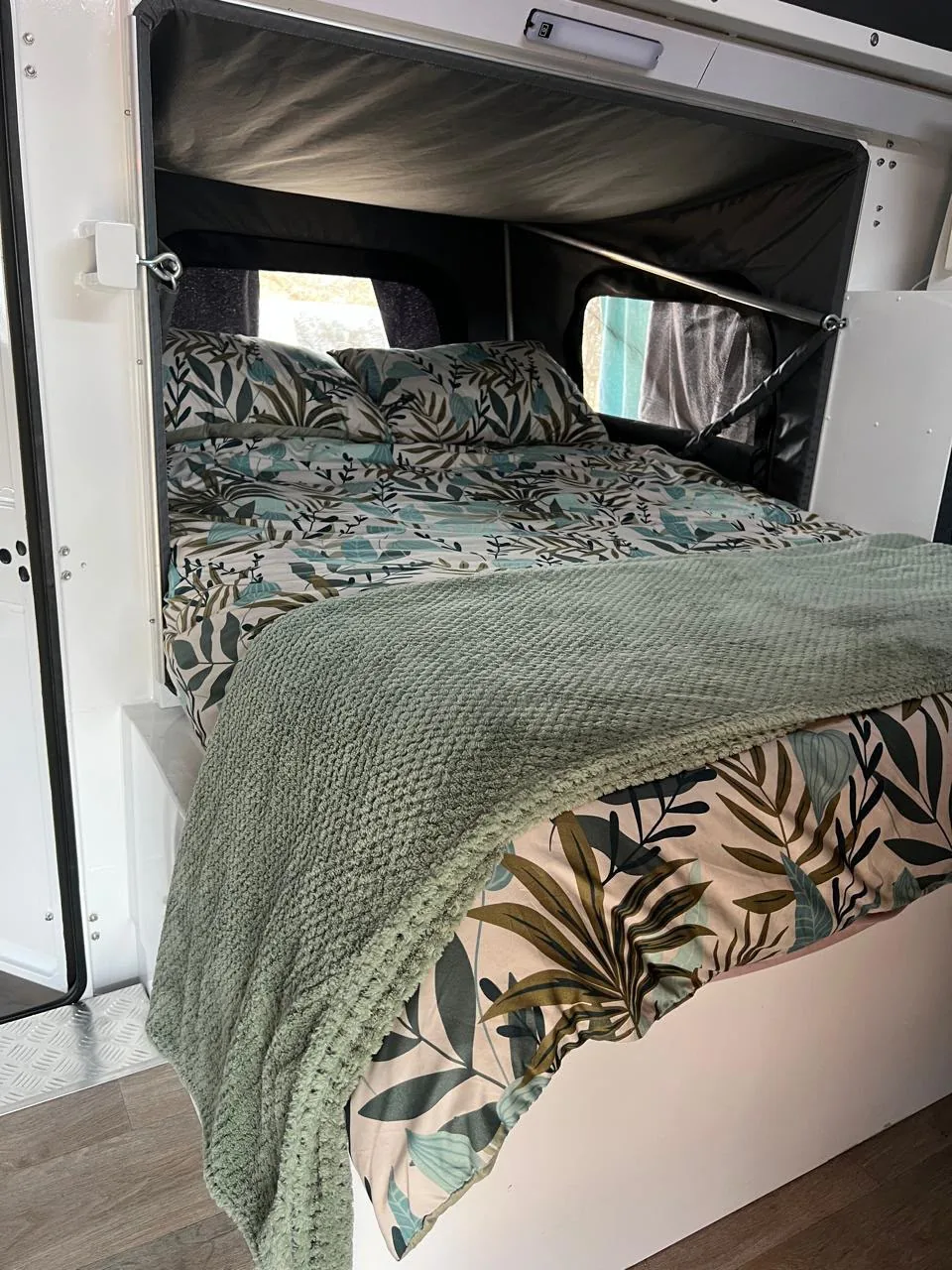

Queen front bed
Folds out into a full 1,860 x 1,500 mm queen with headroom to sit up and read.
X4 Four Sleeper
Room for the whole crew, nowhere near the crowds.
- 4
- Sleeps
- 5,550mm
- Total length
- 1,800kg
- GVM
- 110L
- Water
Overview
A queen bed up front and a fold out double on the side, inside a 3CR12 stainless steel body that goes wherever your tow vehicle can.
The Four Sleeper is the full expression of the X4. A queen size front bed and a fold out double side bed sleep four adults without anyone drawing the short straw, and the cabin still finds room for eight cupboards, three shelving units, a smart TV and a 12,000 BTU aircon.
Underneath it is pure Lux Lander. A 3CR12 stainless steel chassis, a 2,500 kg braked axle on parabolic leaf suspension and 16 inch all terrain tyres give it the composure to handle corrugations, river beds and mountain passes with the family on board.
- Queen front bed, 1,860 x 1,500 mm
- Fold out double side bed, 1,860 x 1,300 mm
- Victron solar system & 110 L water
- 12,000 BTU aircon & smart TV
- Enclosed shower & hot and cold basin
- 360 degree awning
Pricing
Price on request
Request a quote
Exterior
Every hatch
Every hatch
has a job.
Tap a marker to explore the details that make the X4 at home off the tar.
01 / 11
2,700 kg brake coupler
A heavy duty braked coupler rated well above the X4 GVM.

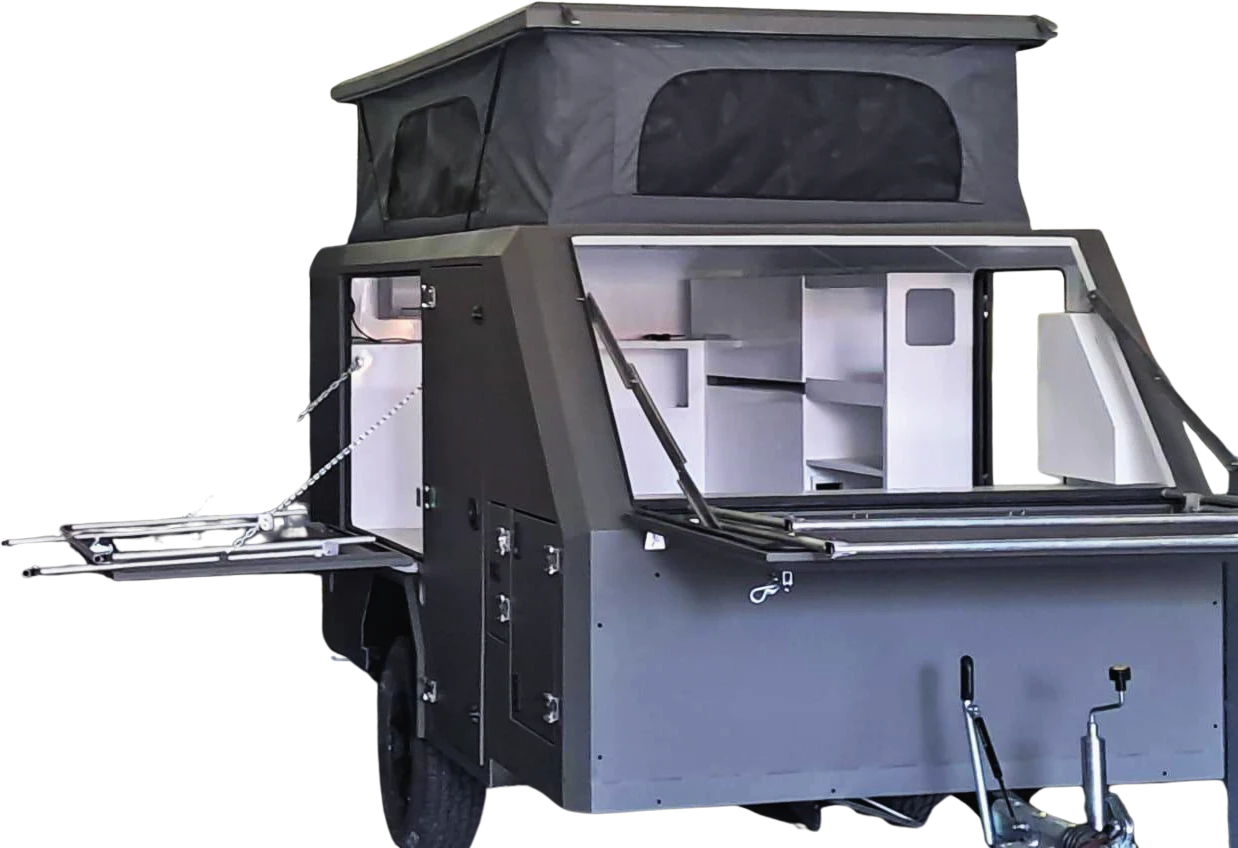

Pop up living
Compact on the road.
Compact on the road.
Tall at camp.
The roof tent lifts in moments to give you standing room inside, then folds down under the awning cover for a low, aerodynamic profile behind your vehicle.
Interior
Home comforts,
Home comforts,
off grid.
- Front bed
- Queen, 1,860 x 1,500 mm
- Side bed
- Double, 1,860 x 1,300 mm
- Internal cupboards
- 8
- Internal shelving
- 3
- Aircon
- 12,000 BTU
- Media centre
- 1 x Smart TV
02
Fold out double
A second double along the side turns the X4 into a genuine four sleeper.
03

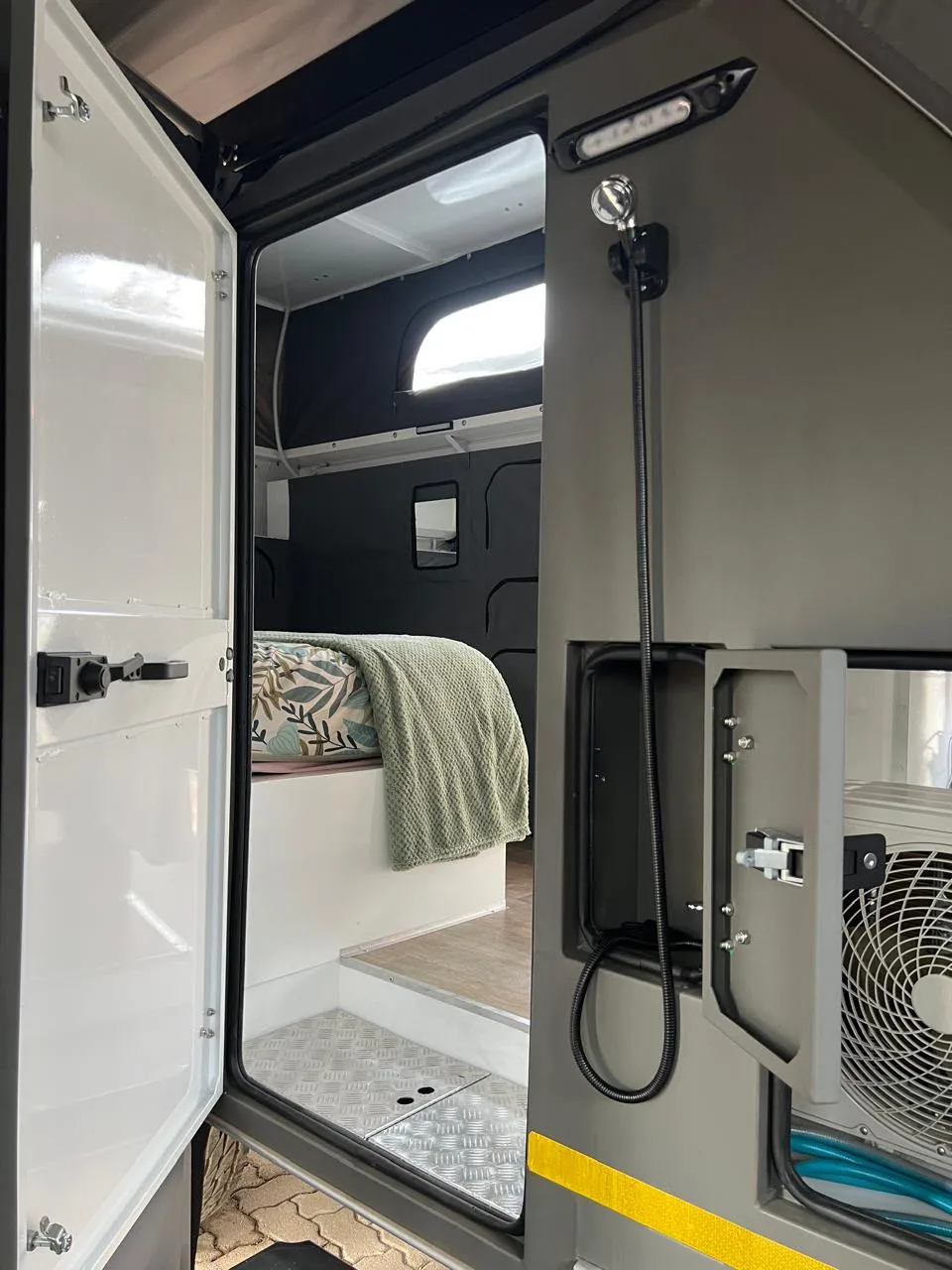

Enclosed shower
A fully functional, totally enclosed shower with hot water on demand.
X4 Four Sleeper
Built in George.
Built in George.
At home anywhere.
Specifications
The numbers.
Full technical data for the X4 Four Sleeper. Weights depend on the options fitted, so please confirm your tow vehicle rating and licence code against the GVM.
Download brochure- Total length
- 5,550 mm
- Body length
- 3,920 mm
- Body width
- 1,980 mm
- Height closed, with awning
- 2,250 mm
- Height with tent open
- 2,850 mm
- Head room inside
- 2,115 mm
- Tare
- 1,400 kg, depending on options
- Payload
- 400 kg
- GVM
- 1,800 kg
- Occupants
- 4
- Chassis
- 3CR12 stainless steel
- Axle
- 2,500 kg solid beam braked axle
- Suspension
- 2,500 kg parabolic leaf blades with shock absorbers
- Coupler
- 2,700 kg brake coupler
- Wheels
- 16 inch 265/70 all terrain tyres, upgrade available to client spec
- Jockey wheel
- Heavy duty double jockey wheel
- Stabilisers
- Front and rear stabiliser legs
- Main body
- 3CR12 stainless steel
- Doors, roof & floor
- Aluminium
- Internal panels
- Aluminium
- Nose cone
- Aluminium
- Finish
- Automotive paint
- Entrances
- Dual entrances
- Front bed
- Queen, 1,860 x 1,500 mm
- Side bed
- Double, 1,860 x 1,300 mm
- Cupboards
- 8 internal
- Shelving
- 3 internal units
- Media
- 1 x Smart TV
- Bathroom
- Enclosed shower, hand wash basin with hot & cold water

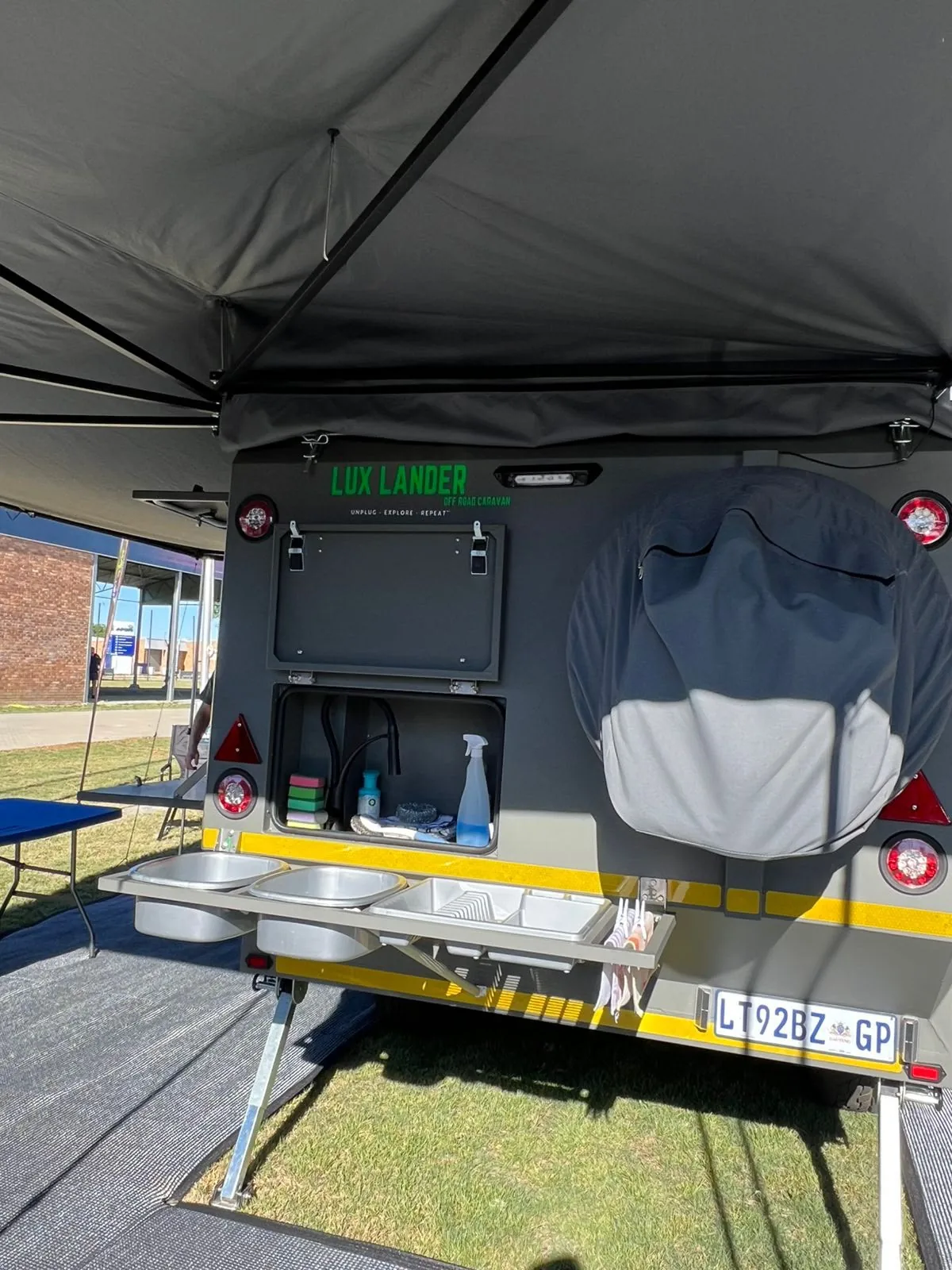

- Kitchen
- Slide out fridge & stove, cutlery drawer, separate pots & pans drawer

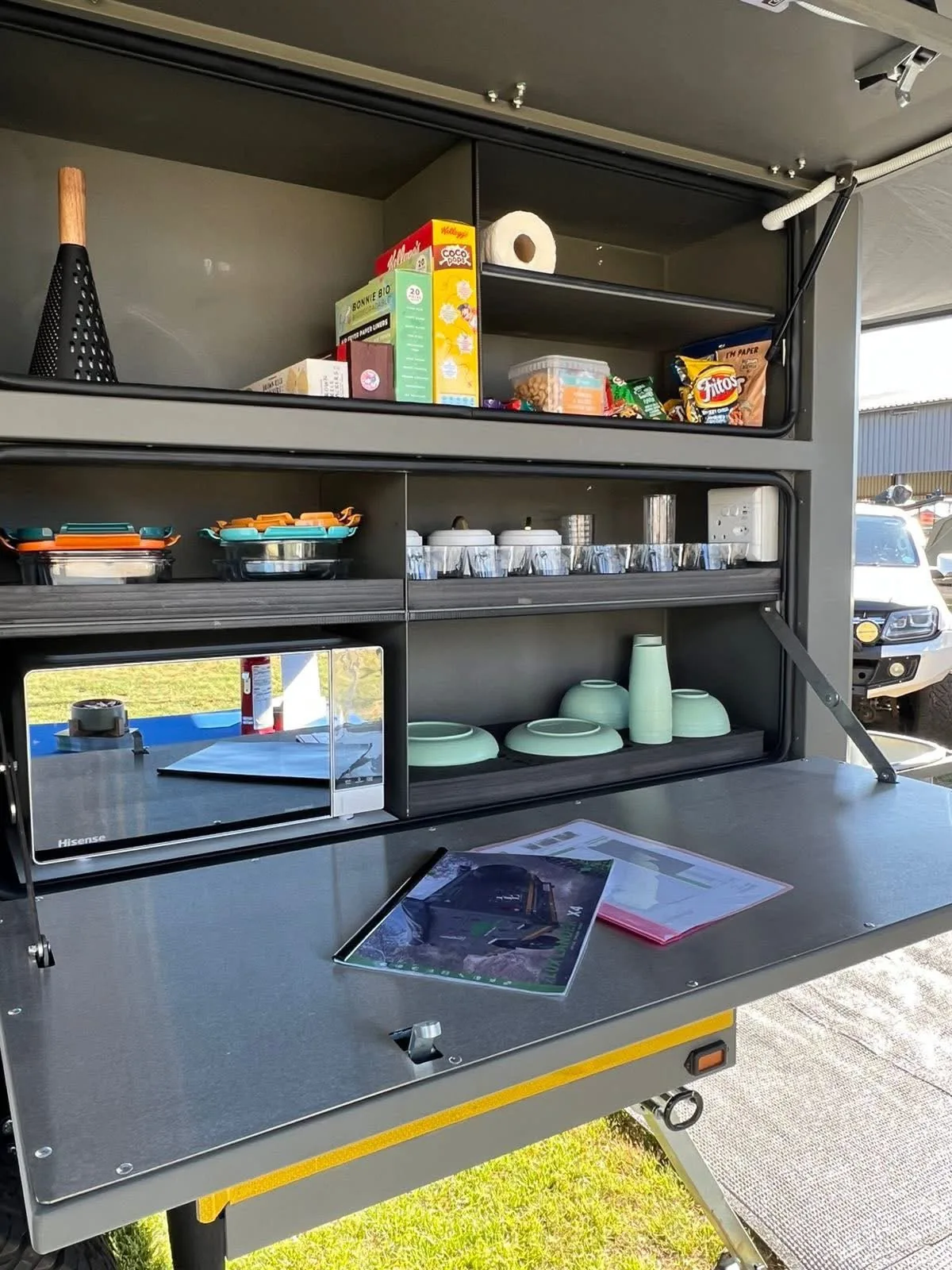

- Pantry
- Grocery cupboards with built in microwave & foam cut outs
- Solar
- Victron solar system
- Water
- 110 L tank
- Power outlet
- Waterproof AC multi plug
- Lighting
- Lumeno LED lights
- Climate
- 12,000 BTU aircon
- Add a room
- Optional
- Back awning
- Optional
- Wheels & tyres
- Upgrade to client spec
Gallery
12 images · tap to enlarge
A closer look.
George, Western Cape
Make it yours.
Book a viewing at our George workshop or ask for a quote on the X4 Four Sleeper. We will come back to you personally, usually within one working day.
